Garage Conversion ADU San Diego - Design, Permits, and Construction
A Garage-to-ADU conversion in San Diego requires a legal “Change of Use,” transforming non-habitable vehicle storage into a premium, autonomous residence. MEE Builders executes precision down-to-the-studs conversions, engineering deep foundation reinforcements, continuous thermal insulation, and independent utility sub-metering to guarantee 2026 municipal compliance and extract maximum rental yield from your existing footprint.
- Fully Licensed & Insured: CSLB #1046249
- 10 Years of Excellence: Serving the San Diego, CA
- 100+ Verified Reviews Google, Yelp, Houzz
Structural Upgrades Required for a San Diego Garage Conversion ADU
Converting a garage is not a simple cosmetic remodel; it is an exercise in structural restoration. A building originally engineered to house vehicles lacks the foundational and framing parameters legally required for human habitation. We engineer these spaces to meet the absolute highest California Residential Code (CRC) standards.
Garage Slab and Foundation Work Required for a Livable ADU
Standard San Diego garage slabs are poured with a deliberate slope for water drainage and typically lack the high-density 10-mil vapor barriers required for interior living spaces. Our civil engineering team saw-cuts the existing 4-inch concrete slab to execute deep infrastructure trenching, installing heavy-duty ABS waste lines and modern PEX-A supply manifolds. To permanently neutralize the sloped floor, we pour heavy-duty self-leveling underlayment compounds, providing a perfectly flat, moisture-resistant substrate for rigid large-format porcelain or sintered stone flooring.
Earthquake Bracing and Infill Wall Engineering for San Diego Garage ADUs
Garages are engineered with wide clear spans for vehicle doors and minimal lateral shear bracing. To bring the structure up to residential life-safety codes, we eradicate the garage door and frame a structural infill wall. This new framing integrates perfectly into the home’s shear line. Our crews then execute comprehensive Earthquake Brace + Bolt (EBB) protocols, physically anchoring the Douglas Fir sill plates directly to the foundation using 5/8-inch steel anchor bolts and high-strength structural epoxy.
Title 24 Compliance for San Diego Garage Conversion ADUs
An unconditioned garage offers zero thermal resistance. To legally occupy the space and ensure long-term tenant retention, we completely overhaul the exterior shell to meet the aggressive 2026 California Title 24 Energy Code mandates.
High-Density Insulation and Moisture Control
We transform a drafty shell into a hermetically sealed thermal vault. We furr out (thicken) the existing 2×4 walls to accommodate high-density continuous cavity insulation. Once the new fenestration (U-factor 0.30 or lower egress windows) is installed and the ductwork is meticulously sealed with mastic, the ADU flawlessly passes the mandatory HERS (Home Energy Rating System) diagnostic blower-door test
Upgrading to Electric-Ready Infrastructure
A standard garage electrical circuit is typically a single 15-amp breaker – vastly insufficient for a modern apartment. We engineer a dedicated 100-amp sub-panel tied to the primary residence’s upgraded 400-amp main service. This robust, heavy-gauge copper infrastructure safely supports high-efficiency heat pump HVAC systems and the mandatory 240-volt, 50-amp circuits required for modern induction cooking ranges.
MEE Builders

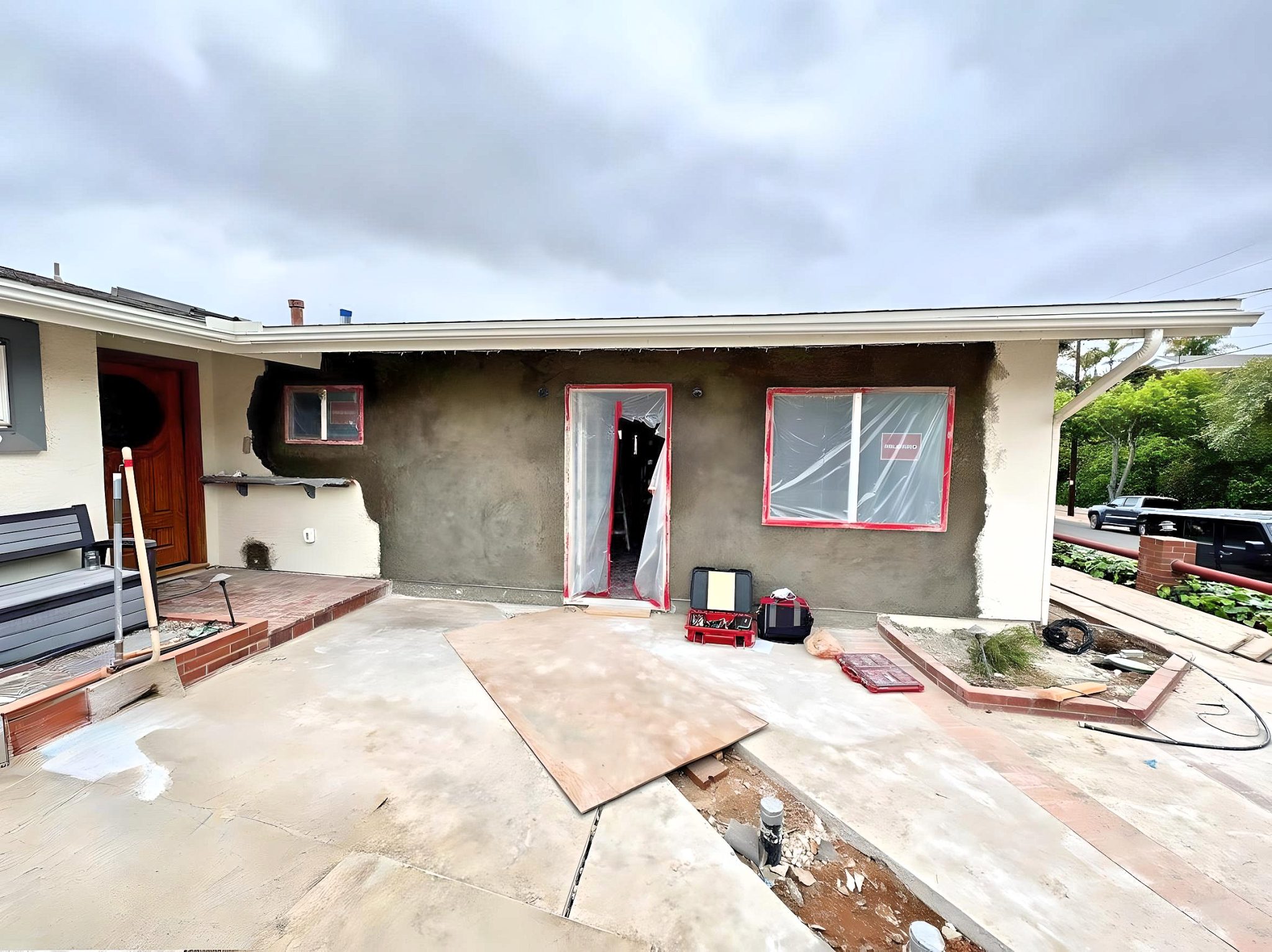

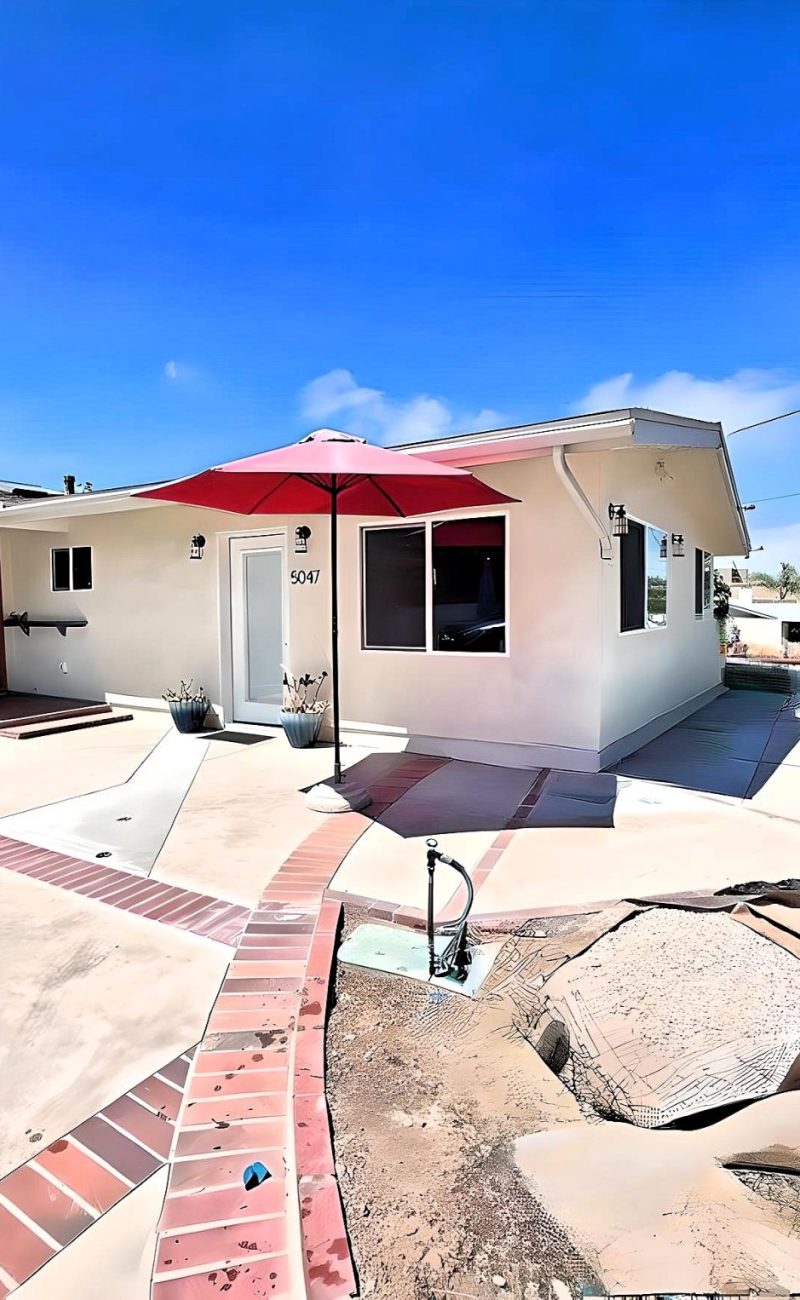

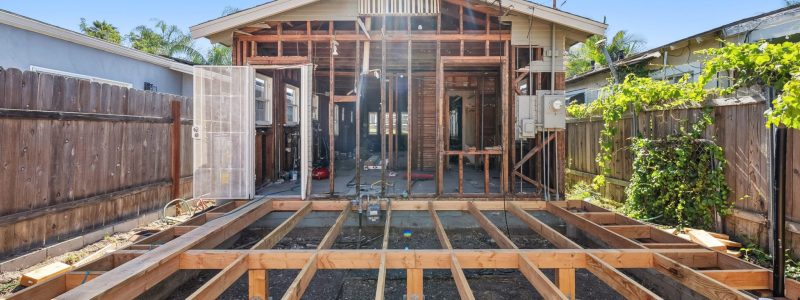

Our Latest Garage Conversion Project
The Backyard Bungalow:
A Complete Garage-to-ADU Transformation
Transform a garage into a bright, modern, and fully independent guest house
Design Strategies That Make a Garage Conversion Feel Like a Real Home
Exterior Design Upgrades That Remove the Original Garage Look

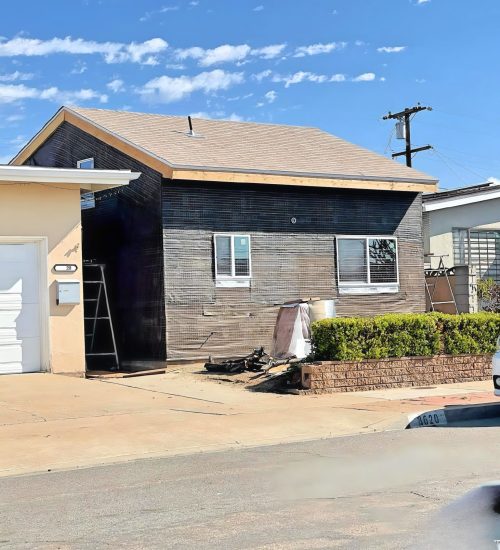

A premium ADU should never look like a garage with a window. We focus heavily on Architectural Camouflage. We remove the sloped concrete driveway approach and replace it with permeable hardscaping, native landscaping, or a private patio. We then lace in new exterior stucco to perfectly match the primary home’s texture, ensuring the new unit looks like an intentional, natural wing of the estate.
Vaulted Ceilings That Make a Small Garage ADU Feel Bigger
The primary limitation of a garage conversion is the compact footprint. While we cannot push the exterior walls out, we engineer the ceiling to push up. Where the roof structure allows, we remove the flat ceiling joists and frame vaulted (cathedral) ceilings utilizing structural LVL headers. This architectural enhancement transforms a compact 400 sq. ft. unit into an airy, light-filled loft space that commands premium rental rates
Plumbing, Sewer, and Utility Planning for Garage Conversion ADUs
Sewer Ejection Pump Systems
Tying new plumbing into the municipal sewer line is mathematically complex when the garage floor sits geographically lower than the primary residence’s sewer lateral (a common reality in San Diego canyon topography). When gravity flow is physically impossible, MEE Builders engineers advanced sewer ejection pump systems. These heavy-duty systems effectively transport waste uphill to the main lateral, ensuring flawless, high-volume sanitation functionality in downhill garages.
San Diego Garage Conversion Rules, Permits, and Code Requirements
San Diego Parking Rules for Garage Conversion ADUs
A massive financial and spatial advantage of a Garage-to-ADU conversion is the legal elimination of replacement parking. Under the updated 2026 San Diego Municipal Code, converting an existing garage into an ADU does not require you to pour new concrete parking pads to replace the lost vehicle storage. Furthermore, if your property is located within a Transit Priority Area (and maintains a continuous sidewalk travel path to transit), standard ADU parking mandates are entirely waived.
Many properties in San Diego conceal illegal, “handyman” garage conversions executed decades ago. When discovered during a real estate transaction, these unpermitted units trigger immediate stop-work orders and “Escrow Paralysis.” MEE Builders specializes in retroactive permitting under Senate Bill 1226 and Information Bulletin 242. We strategically open the drywall to expose hidden plumbing and electrical wire gauges to the city inspector, execute the necessary structural life-safety upgrades, and transform a legal liability into legally permitted, appraised square footage
Zero-Lot-Line Fire Separation And Egress Engineering
Many legacy San Diego garages were constructed directly on or within three feet of the side property line. Converting these specific structures into habitable space legally triggers aggressive California Building Code fire separation mandates. MEE Builders engineers 1-hour fire-rated exterior wall assemblies utilizing high-density Type-X gypsum board to permanently neutralize these boundary liabilities. Furthermore, because the fire code strictly prohibits the installation of windows within three feet of a property line, our architectural team strategically reconfigures the floor plan. We position the mandatory life-safety egress windows on the interior-facing elevations, ensuring the unit passes the Fire Code Official’s inspection on the first attempt without sacrificing natural daylight.
San Diego Garage Conversion ADU FAQs
Do I have to replace the parking spots I lose?
This is the #1 question. In most San Diego “Transit Priority Areas” (which cover a huge portion of the city), no. State law (AB 68) prohibits cities from requiring replacement parking when a garage is converted to an ADU. We will verify your specific address to confirm you are exempt.
What do you do with the sloped garage floor?
Garages are sloped towards the door for drainage. You can’t live on a slope. We have two methods: 1) Sleeper System: Building a wood subfloor above the concrete (great for running pipes underneath). 2) Self-Leveling Concrete: Pouring a new layer to flatten the surface. We choose the method based on your ceiling height.

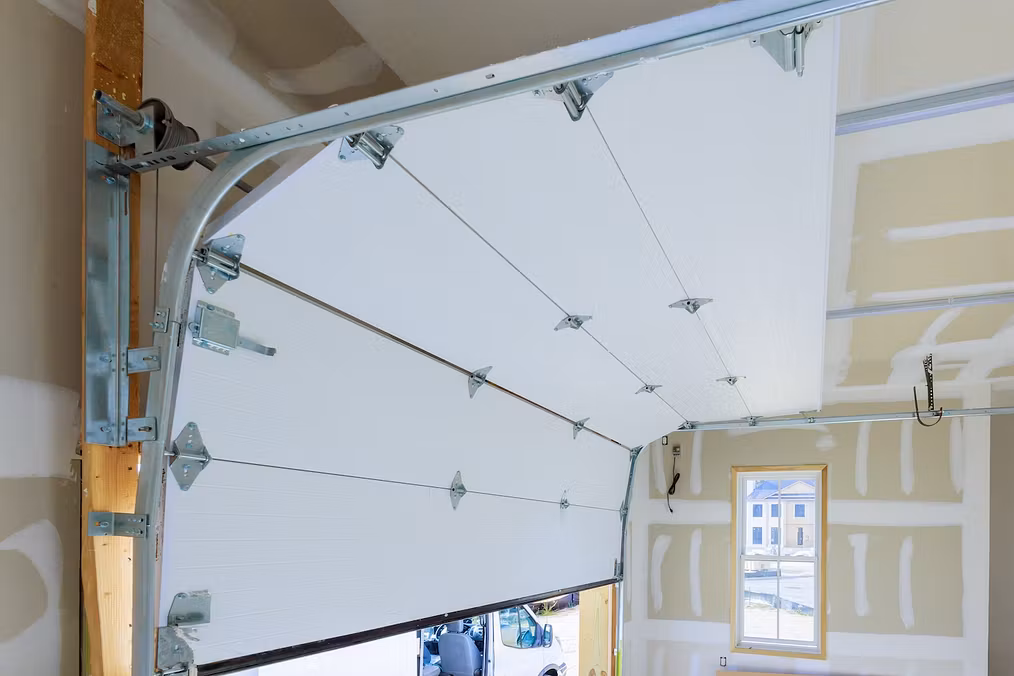

Can I keep the garage door for aesthetics?
Technically yes, but it’s inefficient. Glass garage doors are popular for an “industrial look,” but they are terrible insulators. We recommend replacing the door with a framed wall and high-efficiency windows for better temperature control and privacy, unless you are aiming for an indoor/outdoor “party room” vibe.
Is a garage conversion considered a JADU or a standard ADU?
It can be either! If it’s under 500 sq. ft. and you add an efficiency kitchen, it can be permitted as a JADU (often faster/cheaper fees). If it’s a larger 2-car garage (600+ sq. ft.) or includes a full kitchen, it will be permitted as a Standard Attached ADU. We help you choose the classification that fits your goals.
Where do I put the water heater and laundry?
These are often already in the garage. We usually relocate them to a dedicated “utility closet” within the new ADU layout or move them to an exterior tankless system to save precious interior square footage.
My garage has no windows. How do you bring in natural light?
Habitable rooms require natural light and ventilation (typically 8% of the floor area) by code. We don’t just add a lamp; we cut into the existing exterior walls to frame new, energy-efficient windows. We install structural headers to support the roof load above these new openings. If privacy is a concern (e.g., the wall faces a neighbor), we often install Velux skylights or solar tubes to flood the unit with daylight from above without compromising privacy.
